• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel
• Tires, P255/70R17 all-season, blackwall
• Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome lower
• Bumper, rear chrome with rear bumper corner steps
• CornerStep, rear bumper
• Grille surround, chrome (Not included when (SXL) Elevation Edition is ordered.)
• Active Aero Shutters, front
• Headlamps, high intensity discharge (HID) projector-beam with LED signature
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• 4X4 chrome badge (Included and only available with 4X4 models.)
• Tailgate and bed rail protection caps, top
• Tailgate, locking utilizes same key as ignition and door
• Tailgate, EZ-Lift and Lower
• Door handles, Black

• Audio system, 7" diagonal Color Touch Screen with GMC Infotainment System, AM/FM with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, Pandora Internet radio and voice command pass-through to phone
• 6-speaker audio system
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• Seat, rear full-width folding bench, 3-passenger (includes child seat top tether anchor)
• Floor covering, Graphite-colored rubberized-vinyl

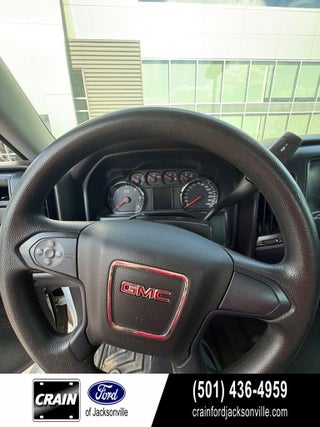

• Steering column, manual Tilt-Wheel
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

• Elevation Edition
• Preferred Equipment Group 1SA
• 6 Speakers
• 6-Speaker Audio System
• AM/FM radio
• Premium audio system: GMC Infotainment System
• Radio data system
• Radio: AM/FM w/GMC Infotainment System
• SiriusXM Radio
• Air Conditioning
• Single-Zone Air Conditioning
• 110-Volt AC Power Outlet
• Power steering
• Power windows
• Remote Keyless Entry
• Heavy Duty Suspension
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Remote Locking Tailgate
• Body Color Lower Front Bumper
• Body Color Rear Bumper w/Cornersteps
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Fully automatic headlights
• High-Intensity Discharge Headlights
• Speed control
• 150 Amp Alternator
• 4X4 Chrome Badge
• Black Manual Outside Mirrors
• Black Power Adjustable Heated Outside Mirrors
• Body Color Bodyside Moldings
• Body Color Door Handles
• Body Color Grille Surround
• Body-Color Mirror Caps
• Bumpers: chrome
• Front License Plate Kit
• Rear step bumper
• Thin Profile LED Fog Lamps
• 3.5" Diagonal Monochromatic Display DIC
• Cloth Seat Trim
• Color-Keyed Carpeting Floor Covering
• Driver door bin
• Front reading lights
• GMC 4G LTE
• GMC Connected Access
• Graphite-Colored Rubberized-Vinyl Floor Covering
• OnStar & GMC Connected Services Capable
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Rubberized-Vinyl Front Floor Mats
• Rubberized-Vinyl Rear Floor Mats
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• 3-Passenger Full-Width Folding Rear Bench Seat
• 40/20/40 Front Split Bench Seat
• Front Center Armrest w/Storage
• Passenger door bin
• Front Frame-Mounted Black Recovery Hooks
• Integrated Trailer Brake Controller
• Wheels: 17" x 8" Painted Steel
• Wheels: 20" x 9" Black-Painted Aluminum
• Deep-Tinted Glass
• Solar Absorbing Tinted Glass
• Variably intermittent wipers
• 3.42 Rear Axle Ratio

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3098
• Curb Weight - Rear (lbs): 2016
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 900
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): 3950
• Rear Tire Capacity (lbs): 3950
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall (in): 229.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.90
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.00
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary

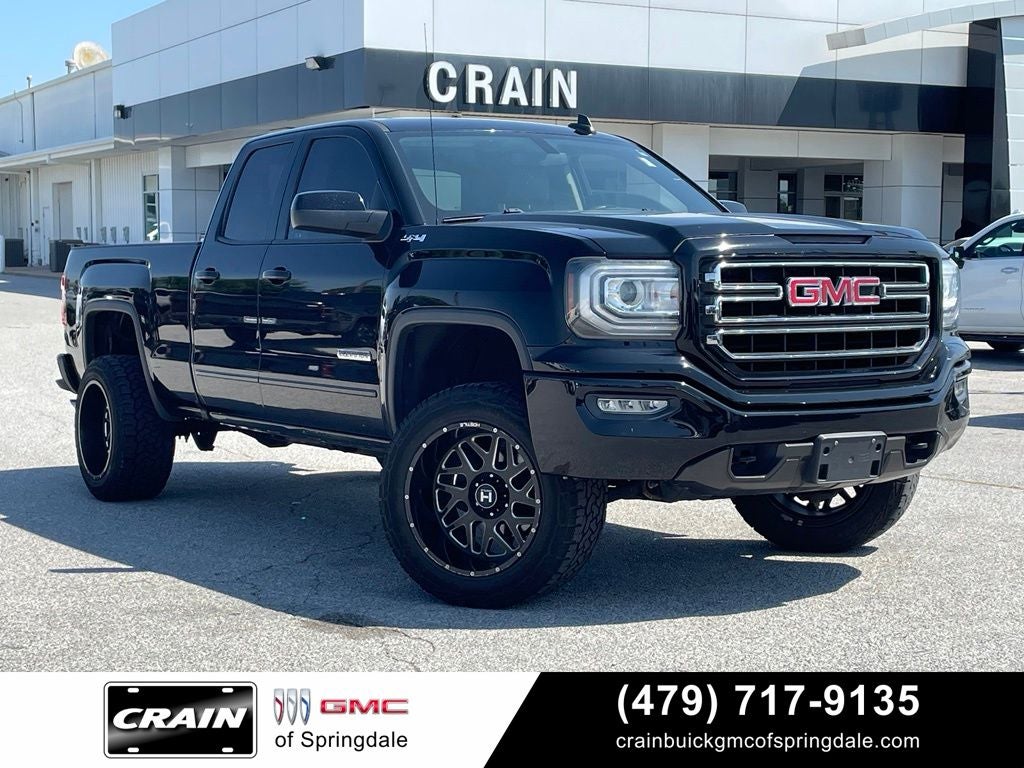

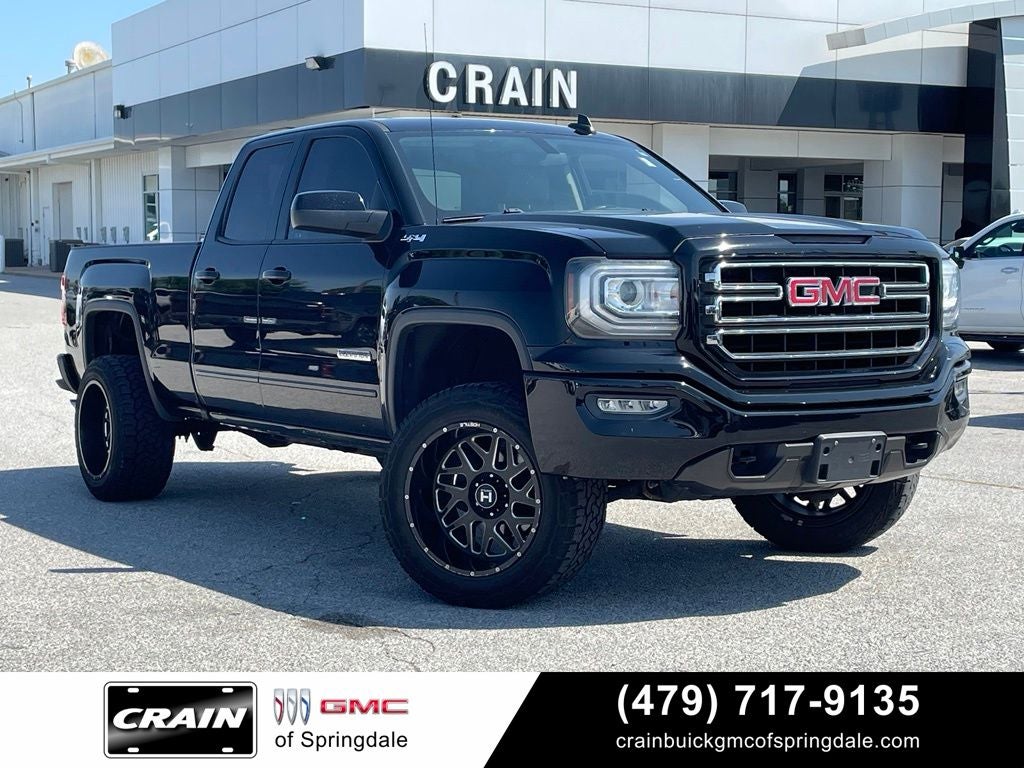

• Vehicle Name: GMC Sierra 1500 Limited
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.3
